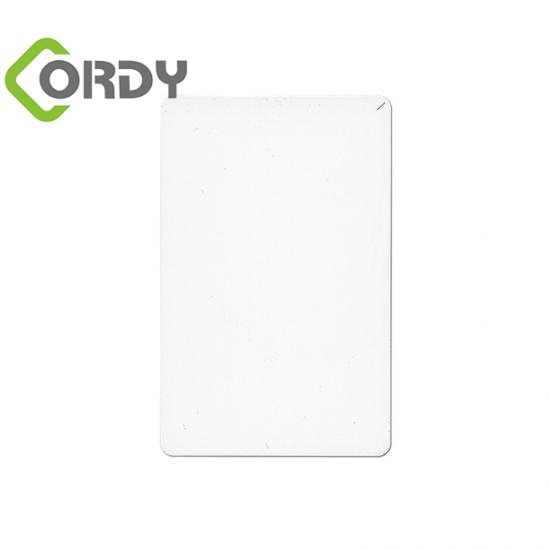

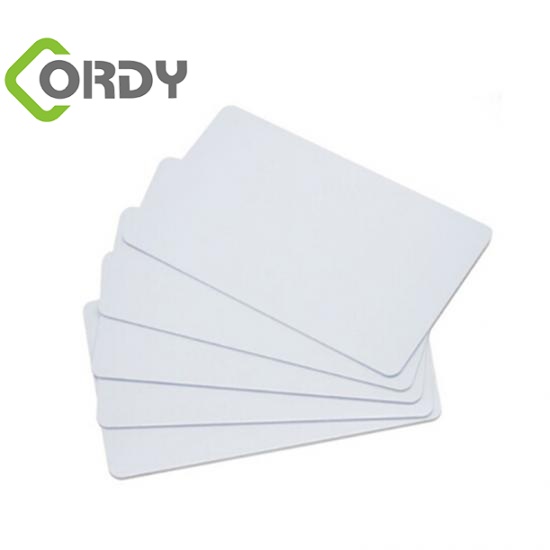

Contactless IC Cards MIFARE Classic 1K 13.56mhz rewritable rfid card

MIFARE Classic®

MIFARE Classic EV1 1K - Mainstream contactless smart card IC for fast and easy solution development

NXP Semiconductors has developed the MIFARE Classic EV1 contactless IC MF1S50yyX/V1 to be used in a contactless smart card according to ISO/IEC 14443 TypeA.

The MIFARE Classic EV1 with 1K memory MF1S50yyX/V1 IC is used in applications like public transport ticketing and can also be used for various other applications.

MIFARE and MIFARE Classic are trademarks of NXP B.V.

Features and benefits

• Contactless transmission of data and energy supply

• Operating distance up to 100 mm depending on antenna geometry and reader configuration

• Operating frequency of 13.56 MHz

• Data transfer of 106 kbit/s

• Data integrity of 16-bit CRC, parity, bit coding, counting

• Anticollision

• Typical ticketing transaction time of < 100 ms (including backup management)

• 7 Byte UID or 4 Byte NUID

• Random ID support (7 Byte UID version)

• NXP Originality Check support

Application:

• Public transportation                          • Access management

• Electronic toll collection                    • Car parking

• School and campus cards                    • Employee cards

• Internet cafés                                    • Loyalty

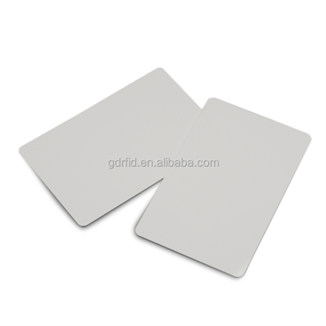

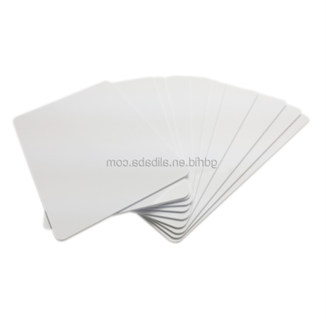

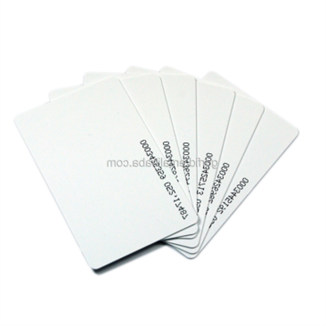

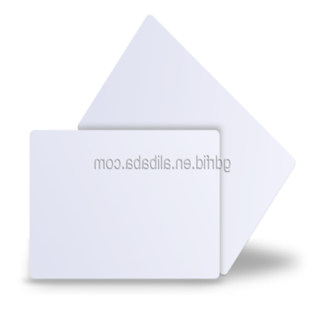

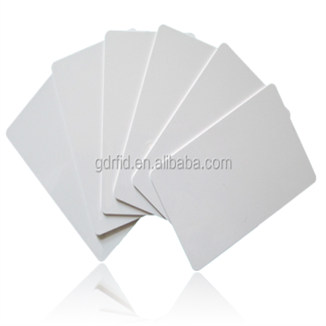

Detailed Images

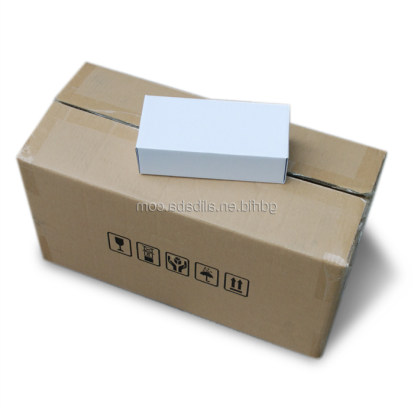

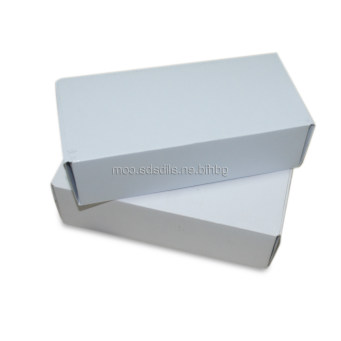

Packing & Delivery

Carton size: L53CM*W25CM*H15CM, 200PCS/BOX, 2000PCS/CARTON, 14KG/CARTON
