/Custom Printing MIFARE Ultralight EV1 woven wristband with rfid for Concert Festival Ticket

Custom Printing MIFARE Ultralight EV1 woven wristband with rfid for Concert Festival Ticket

RFID/NFC Wristbands now gradually have been replaced traditional paper ticket for different events festivals, a fast checking and access and accurate data to make it more and more popular in water park, amusement park, hotel, hospital, school and so on different fields for Access Control or Cashless Payment.
  • Material:

    Paper/PVC/PET
  • Color:

    white,custom made printing
  • Frequency:

    13.56MHz
  • product details

Custom Printing MIFARE Ultralight EV1 woven wristband with rfid for Concert Festival Ticket

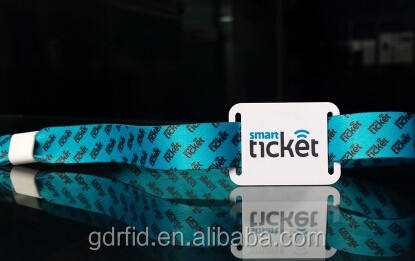

RFID Woven wristband
1. Material: woven+mini PVC or PVC+epoxy
2. Tag Size: 39x23mm with hole 2x18mm
3. Woven length: customized, normally 400mm.

Personalization
1. printing LOGO, or NUMBER
2. Laser RUNNING NUMBER, or UID NUMBER, or LETTER

Chip information
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license
MIFARE Ultralight®
MIFARE® Ultralight-based tickets offer an ideal solution for low-cost, high-volume applications such as public transport, loyalty cards. and event ticketing
They serve as a perfect contactless replacement for magnetic stripe, barcode, or QR-code systems.
The introduction of the contactless MIFARE Ultralight® ICs for limited-use applications can lead to reduced system installation and maintenance costs
MIFARE Ultralight EV1 - Contactless ticket IC


1. General description
NXP Semiconductors developed the MIFARE Ultralight EV1 MF0ULx1 for use in a contactless smart ticket, smart card or token in combination with a Proximity Coupling Device (PCD).
The MF0ULx1 is designed to work in an ISO/IEC 14443 Type A compliant environment
The target applications include single trip or limited use tickets in public transportation networks, loyalty cards or day passes for events.
The MF0ULx1 serves as a replacement for conventional ticketing solutions such as paper tickets, magnetic stripe tickets or coins. It is also a perfect ticketing counterpart to contactless card families such as MIFARE DESFire or MIFARE Plus.
The MIFARE Ultralight EV1 is succeeding the MIFARE Ultralight ticketing IC and is fully functional backwards compatible. Its enhanced feature and command set enable more efficient implementations and offer more flexibility in system designs.
The mechanical and electrical specifications of MIFARE Ultralight EV1 are tailored to meet the requirements of inlay and paper ticket manufacturers.


2. Features and benefits
Contactless transmission of data and supply energy
Operating distance up to 100 mm depending on antenna geometry and reader configuration
Operating frequency of 13.56 MHz
Data transfer of 106 kbit/s
Data integrity of 16-bit CRC, parity, bit coding, bit counting
True anticollision
7 byte serial number (cascade level 2 according to ISO/IEC 14443-3
Typical ticketing transaction: < 35 ms
Fast counter transaction: < 10 ms
EEPROM
640-bit or 1312-bit, organized in 20 or 41 pages with 4 bytes per page
First 512 bits compatible to MF0ICU1
Field programmable read-only locking function per page for the first 512 bits
Field programmable read-only locking function per 2 pages above page 15
32-bit user definable One-Time Programmable (OTP) area • 384-bit or 1024-bit freely available user Read/ Write area (12 or 32 pages)
3 independent, true one-way 24-bit counters on top of the user area
Anti-tearing support for counters, OTP area and lock bits
Configurable password protection with optional limit of unsuccessful attempts
ECC based originality signature • Data retention time of 10 years
Write endurance 100.000 cycles
Write endurance for one-way counters 1.000.000 cycles


3. Applications
Public transportation
Event ticketing
Loyalty


Company Information

Our factory,locates in Zhongshan city and established in 1993,is a listed company.We are a professional manufacturer of smart card and RFID tags. Since 2000, we provide millions of smart card/RFID tag to our client worldwide every year.

We established the important partnership with the major semiconductor companies worldwide. We have large-scale lamination production line and low-cost smart labels production line,flip chip line and advanced personalization equipment and digital printing machines.
