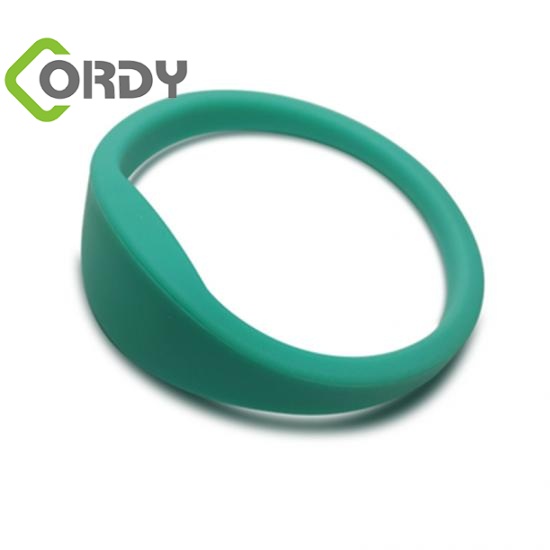

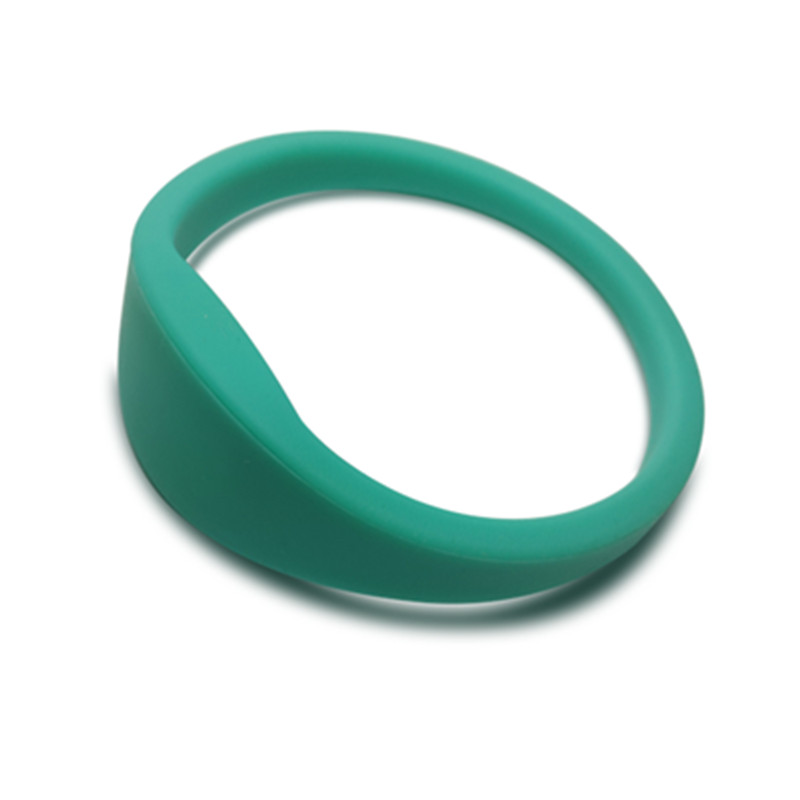

HF 13.56MHz NXP MIFARE Classic EV1 Heat Resisting Wristband Silicone

Flexible, comfortable to wear, easy to use, waterproof, dustproof, moistureproof, shockproof, and resistance to high temperature.

RFID wristband can be widely applied in swimming pool, theme park, marathon, hospital management, membership management and loyalty program and access control management etc. B

Material:
Silicone
Dimension:
Color:
Red, Green, Blue, Yellow, Black, White, Purple, or custom color.
Frequency:
13.56MHz
Chip:
Weight:
Structure:
Operating temp:
-30℃ to +75℃

contact now

product details

Wholesale RFID Fabric Wristbands For Event With Customized Logo Printing

Product Specification

Material：Silicone

Shape:Round watch

Size:Large Size: Diameter 74mm, Weight 19g/pc.

Middle Size: Diameter 70mm, Weight 18g/pc.

Small Size: Diameter 65mm, Weight 15g/pc.

Baby Size: Diameter 45mm, Weight 13g/pc.

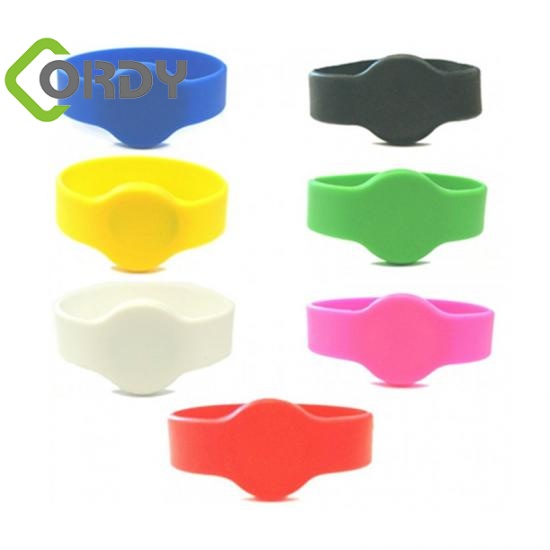

Material Color:Red, Green, Blue, Yellow, Black, White, Purple, or custom color.

Operating Temp:-30℃ to +75℃

Waterproof/Dustproof:IP68

Personalization:

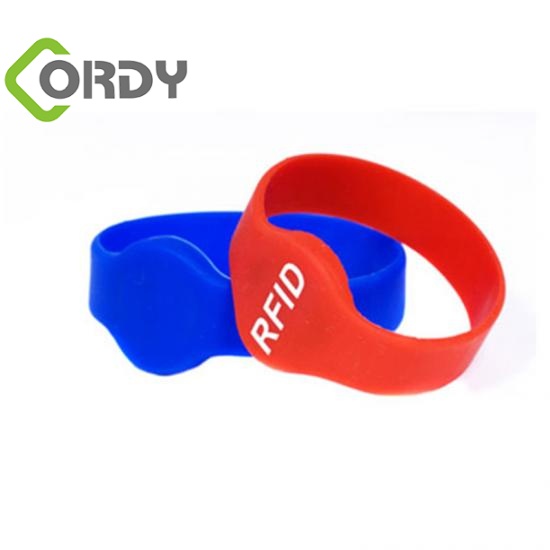

1. Silk screen printing LOGO, or NUMBER

2. Laser RUNNING NUMBER, or UID NUMBER, or LETTER

Chip Description:

MIFARE and MIFARE Classic are trademarks of NXP B.V.

NXP Semiconductors has developed the MIFARE Classic NXP MIFARE Classic EV1 to be used in

a contactless smart card according to 14443 Type A.

The MIFARE Classic EV1 NXP MIFARE Classic EV1 IC is used in applications like public

transport ticketing and can also be used for various other applications.

The NXP MIFARE Classic EV1 is designed for simple integration and user convenience which allows complete ticketing transactions to be handled in less than 100 ms.

4 kB, organized in 32 sectors of 4 blocks and 8 sectors of 16 blocks (one block consists of 16 byte). User definable access conditions for each memory block

Data retention time of 10 years • Write endurance 200000 cycles

Application:

It is widely used in Amusement Park, School, Club, Event, Bus, Access Control, Outdoor Operation, where is very wet environment. It will work well after being soaked in water for a long time, or harsh environment conditions.

Detailed Images

Company Information

Our factory,locates in Zhongshan city and established in 1993,is a listed company.We are a professional manufacturer of smart card and RFID tags. Since 2000, we provide millions of smart card/RFID tag to our client worldwide every year.

We established the important partnership with the major semiconductor companies worldwide. We have large-scale lamination production line and low-cost smart labels production line,flip chip line and advanced personalization equipment and digital printing machines.
