/Smart MIFARE Ultralight EV1 waterproof wristband silicone 13.56MHz

Smart MIFARE Ultralight EV1 waterproof wristband silicone 13.56MHz

These 13.56mhz MIFARE Ultralight EV1 waterproof wristbands are available in adult and child size with different colour options like red,green,blue,yellow,black,white,purple or custom color.

  • Material:

    Silicone
  • Frequency:

    13.56MHz
  • Operating temp:

    -30℃ to +75℃
  • product details

Flexible, comfortable to wear, easy to use, waterproof, dustproof, moistureproof, shockproof, and resistance to high temperature.

Material

Silicone

Shape

Round watch

Size

Large Size: Diameter 74mm, Weight 19g/pc.

Middle Size: Diameter 70mm, Weight 18g/pc.

Small Size: Diameter 65mm, Weight 15g/pc.

Baby Size: Diameter 45mm, Weight 13g/pc.

Material Color

Red, Green, Blue, Yellow, Black, White, Purple, or custom color.

Operating Temp

-30℃ to +75℃

Waterproof/Dustproof

IP68


Personalization:
1. Silk screen printing LOGO, or NUMBER
2. Laser RUNNING NUMBER, or UID NUMBER, or LETTER


Chip Description:

NXP Semiconductors developed the MIFARE Ultralight EV1 MF0ULx1 for use in a contactless smart ticket, smart card or token in combination with a Proximity Coupling Device (PCD). The MF0ULx1 is designed to work in an ISO/IEC 14443 Type A compliant environment (see [1]). The target applications include single trip or limited use tickets in public transportation networks, loyalty cards or day passes for events. The MF0ULx1 serves as a replacement for conventional ticketing solutions such as paper tickets,magnetic stripe tickets or coins. It is also a perfect ticketing counterpart to contactless card families such as MIFARE DESFire or MIFARE Plus.


The MIFARE Ultralight EV1 is succeeding the MIFARE Ultralight ticketing IC and is fully functional backwards compatible. Its enhanced feature and command set enable more efficient implementations and offer more flexibility in system designs.The mechanical and electrical specifications of MIFARE Ultralight EV1 are tailored to meet the requirements of inlay and paper ticket manufacturers.
"MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license


Application:

It is widely used in Amusement Park, School, Club, Event, Bus, Access Control, Outdoor Operation, where is very wet environment. It will work well after being soaked in water for a long time, or harsh environment conditions.


Detailed Images

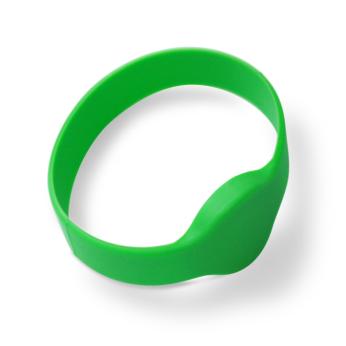

 Smart wristband silicone
